ZLTECH 8inch 48V 150kg wheel hub motor with rubber tire

Short Description:

Shenzhen Zhongling Technology is a research and development enterprise mainly engaged in the research and development and production of wheel hub servo motors and drivers. It supports the customization of a variety of hub motor products, has a strong research team, and has a perfect sales after-sales system. We have cooperated with more than 500 high-tech companies to make mutual progress and bring more perfect and excellent products and services to customers. We do not seek the lowest price, but we seek to let customers use the best products at the lowest price. If you need hub motor, driver, stepping motor and other series of products, you can click our official website www.zlrobotmotor.com to learn more.


Product Detail

Product Tags

Features

1. The integrated structure of encoder, motor and wheel is more conducive to improving accuracy and reliability.
2. the installation mode is simple, the installation is convenient and the precision is high.
3. Outstanding low-speed characteristics and good stability.
4. Low noise, compared with the traditional scheme of brush or brushless motor+reducer, the mute effect is good.
5. Built-in encoder, simple wiring, strong earthquake resistance.
6. Built-in temperature sensor can monitor the motor temperature in real time, providing various protection mechanisms.
7. The life of the hub motor can be used continuously for 8000h, and the tire can run 200000 km.

FAQ

Q1: Are you factory supplier?
A: Yes,we are factory with Strong R&D team. We can do both OEM and ODM.

Q2: What is your MOQ?
A: MOQ is 1 pcs.

Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days.

Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support.

Q6: How about your after-sale service?
A: We provide technical support via online communication. Moreover, Welcome to visit our factory to learn and check the robot hub motor.

Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer ,Credit card

Parameters

Item ZLLG80ASM250-4096 V2.02
Size 8.0"
Tire Rubber with hole/PU
Wheel Diameter(mm) Rubber tire: 198
Shaft Single
Rated voltage (VDC) 24
Rated power (W) 350
Rated torque (N.m) 6
Peak torque (N.m) 18
Rated Phase current (A) 6
Peak current (A) 18
Rated speed (RPM) 160
Max speed (RPM) 205
Poles No (Pair) 15
Encoder 4096 Magnetic
Protection level IP65
Lead wire (mm) 600±50
Insulation voltage resistance (V/min) AC1000V
Insulation voltage(V) DC500V, >20MΩ
Ambient temperature (°C) -20~+40
Ambient humidity (%) 20~80
Weight(KG) 4.25
Load(KG/2sets) 150

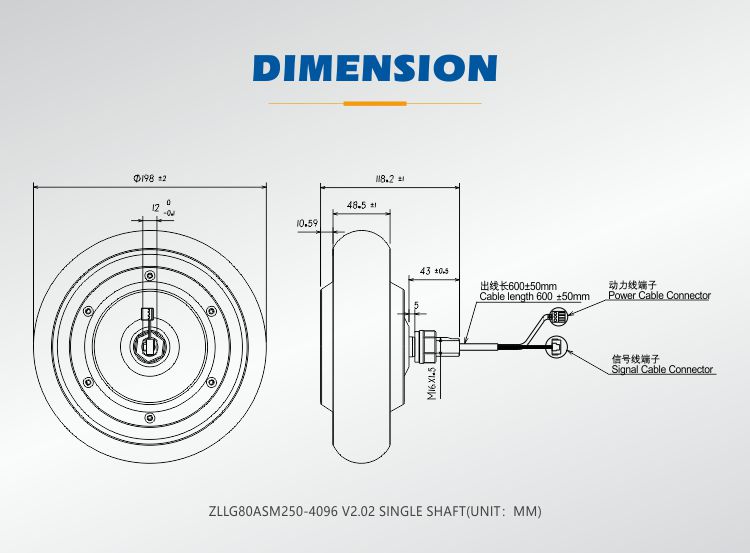

Dimension

1

Application

Brushless DC motors are widely used in electronic manufacturing, medical equipment, packaging equipment, logistics equipment, industrial robots, photovoltaic equipment and other automation fields.
